PTFE SHEET (PTFE COATED GLASS FABRIC)
PTFE coated fiberglass fabric and Kevlar fabrics are made of fabric impregnated with PTFE dispersion.
It is widely used in packaging, heat molding, garment, food industries and so on.
ㅣFeatures
Excellent Thermal Resistance: Stable performance from -70°C to 260°C
Excellent Non-Stick & Release Properties: Easily repels resins, oils, and other sticky substances.
Superior Mechanical Strength: Low friction coefficient with minimal distortion.
Excellent chemical resistance

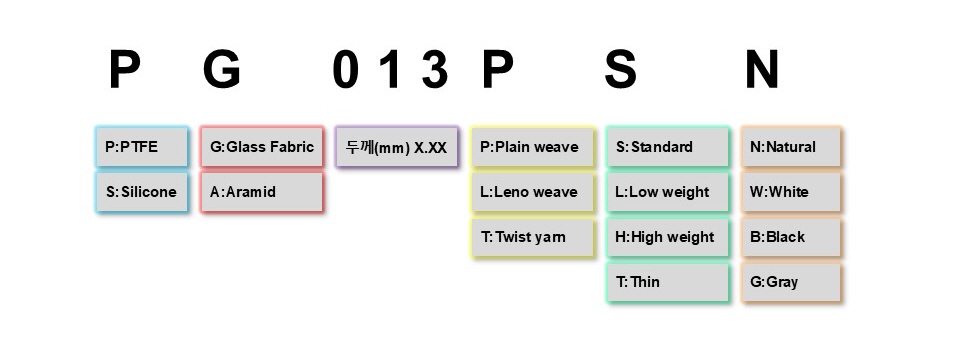

ㅣProduct nomenclature
ㅣProduct type
Standard & Premium Grade
General purpose Standard Grade fabrics coated with PTFE is providing excellent heat resistance and excellent release for a wide range of application. Used extensively in packing, sealing and bakery sheet application, release sheets on heat-sealing machines and laminate press etc.
We are also providing premium grade that is made with extra special coating. It is specially designed to reinforce the characteristic having longer life time, better release function, etc.
◽ Category of our products
| ITEM NAME | WIDTH(mm) | COLOR | THICKNESS(mm) | COATED WEIGHT(g/m2) | PTFE Content(%) |
| PG005PSN | 1,000 - 1,500 | Brown | 0.05 | 67 | 63 |
| PG008PSN | 1,000 - 1,500 | Brown | 0.08 | 136 | 64 |
| PG013PSN | 1,000 - 1,500 | Brown | 0.13 | 252 | 57 |
| PG014PSN | 1,000 - 1,500 | Brown | 0.14 | 282 | 62 |
| PG015PSN | 1,000 - 1,500 | Brown | 0.15 | 312 | 65 |
| PG023PSN | 1,000 - 2,000 | Brown | 0.23 | 455 | 54 |
| PG025PSN | 1,000 - 1,500 | Brown | 0.25 | 490 | 57 |
| PG025TSN | 1,000 - 2,600 | Brown | 0.25 | 490 | 57 |
| PG036PSN | 1,000 - 2,600 | Brown | 0.36 | 680 | 57 |
| PG050PSN | 2,700 | Brown | 0.50 | 880 | 54 |
| PG070PSN | 2,600 | Brown | 0.70 | 1100 | 45 |
※ If you scroll horizontally on your mobile, you can see the whole story.
※ Other specifications are subject to customer’s requirement.
Anti-Static Grade
Specially designed for anti-static and conductive property with carbon additive. It can be applied for conveyor belt, fusing belt & release sheet that static charges can be occurred. Designed for less static problem in belt and slip sheet application.
◽ Category of our products
| ITEM NANE | WIDTH(mm) | COLOR | THICKNESS(mm) | COATED WEIGHT(g/m2) | PTFE Content(%) |
| PG008PSB | 1,000 - 1,500 | Black | 0.08 | 143 | 66 |
| PG013PSB | 1,000 - 1,500 | Black | 0.13 | 252 | 57 |
| PG025TSB | 1,000 - 2,600 | Black | 0.25 | 510 | 60 |
| PG036PSB | 1,000 - 2,600 | Black | 0.36 | 700 | 58 |
※ If you scroll horizontally on your mobile, you can see the whole story.
※ Other specifications are subject to customer’s requirement.
Tearing & Crease Resistance Grade
This is developed to resist tearing, folding, creasing with excellent release property.
It is used widely for high speed belt, edge reinforcement of belt, etc. for use in application where high tear & tensile strength and good flexibility is required.
◽ Category of our products
| ITEM NANE | WIDTH(mm) | COLOR | THICKNESS(mm) | COATED WEIGHT(g/m2) | PTFE Content(%) |
| PG013TSW(E2) | 1,000 - 1,500 | White | 0.13 | 255 | 56 |
| PG015TSW | 1,000 - 1,500 | White | 0.15 | 296 | 62 |
※ If you scroll horizontally on your mobile, you can see the whole story.
※ Other specifications are subject to customer’s requirement.
